Product Features

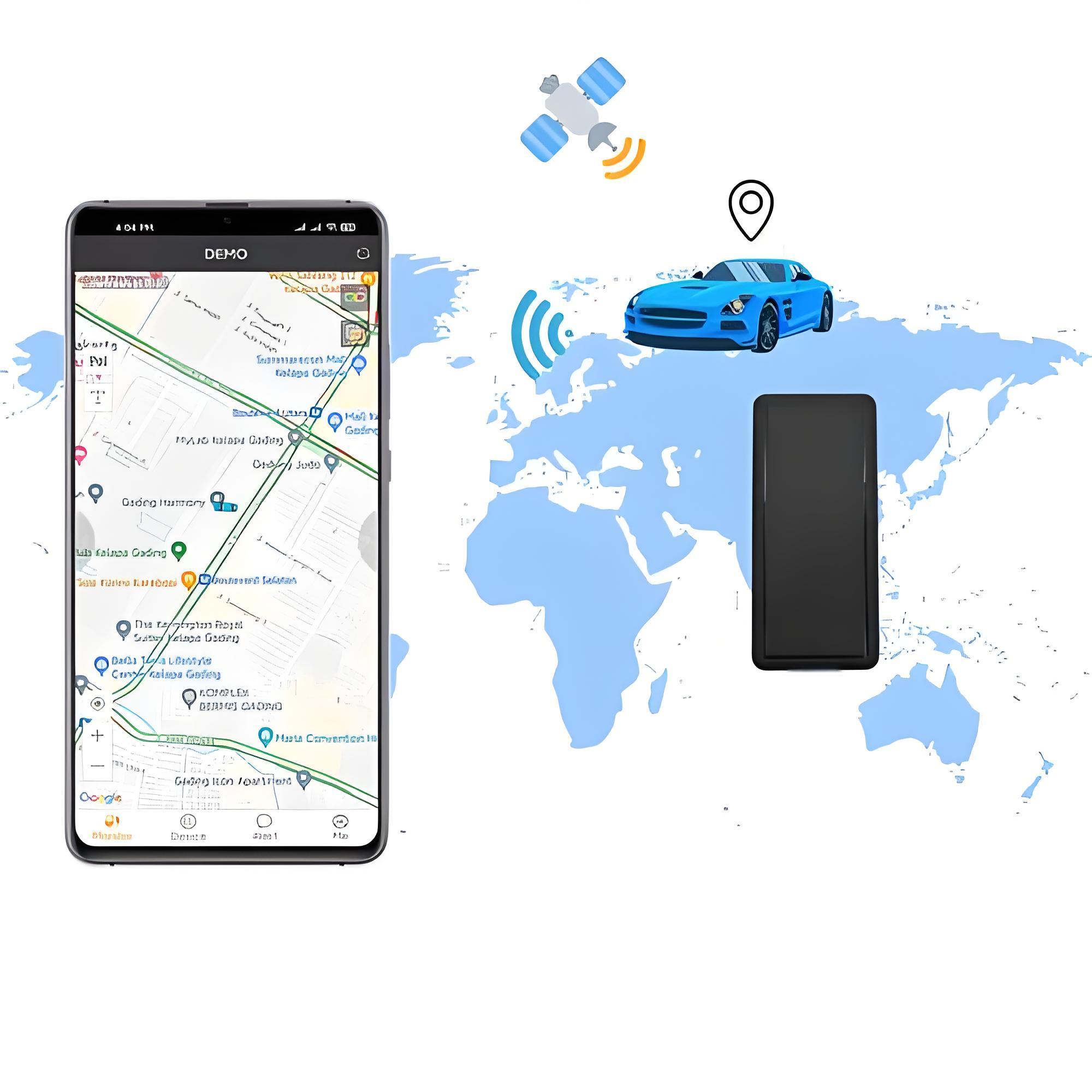

GNSS (GPS+Beidou)+LBS+WiFi+AGPS multiple positioning method

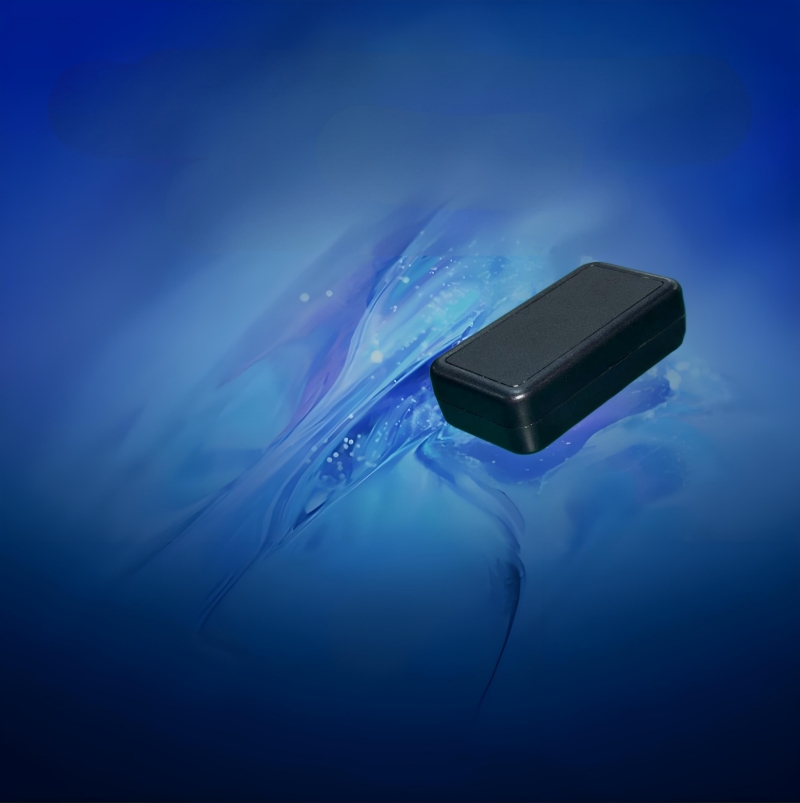

The 4G LTE high accuracy GPS tracker is easy to see where the multiple intelligent location tracker are, synchronously receiving Beidou and GPS GNSS signals, and supporting WiFi LBS positioning, multiple positioning for more accurate assistance in vehicle, cargo, and asset management.
4G network communication, faster and more accurate positioning
There are advantages in network coverage, speed, and latency, supporting full network LTE Cat.1., the transmission speed is faster, and there is no need to worry about 2G/3G network disconnection causing devices to be unable to use。
Light sensitive anti disassembly
Built in light sensing protection, the 4G LTE high accuracy GPS tracker remains in standby mode for a long time. Once the 4G LTE high accuracy GPS tracker is detected that it has been removed, an alarm message will be sent back to the platform
Multiple alarms safeguard vehicle safety
Continuously monitor abnormal vibration, low power of equipment, fence, overspeed, dismantling, detachment and other states, upload alarm information as soon as possible, and safeguard vehicle safety
Multiple working modes
Intelligent, timed, and ultra long standby modes are available to meet the professional needs of different customers. Fully charged once a day, with a standby time of 1 year
Defense and withdrawal
Automatic or manual defense/disarming
super magnet
Permanent strong magnetic adsorption, easy to install. Built in strong magnets that can attach to any metal corner inside or outside the car.
IP67 dustproof and waterproof
Adapt to more environments and have strong adaptability. Suitable for complex and harsh scenarios, such as rental cars, large trucks, buses, private cars, motorcycles, etc.
Core Functions
| Function Block | Function Details | Function Description | ||
| Working mode | intelligent mode | The 4G LTE high accuracy GPS tracker does not actively upload positioning data to the platform. When the user opens the app/mini program, the locator automatically sends positioning data to the platform location. After sending the positioning information, the 4G LTE high accuracy GPS tracker automatically enters intelligent standby mode. | ||
| Timing mode | Timed feedback, returning location data according to the set time | |||
| Superlong Standby Time | You can set a time point to send data, such as choosing a day or several days of the week to send location data and then go into sleep mode | |||
| Positioning | Location Tracking | The terminal automatically recognizes the terminal status and uploads positioning data at preset time intervals | ||
| Low-power consumption | Intelligent power-saving | The 4G LTE high accuracy GPS tracker automatically recognizes a stationary state and enters a low-power power-saving mode. The 3D three-axis acceleration sensor senses the real-time vibration status of the terminal. When powered on, the 4G LTE high accuracy GPS tracker is in motion mode. When the 4G LTE high accuracy GPS tracker is stationary for 5 minutes, it enters stationary mode. When the GPS module is turned off, the 4G LTE high accuracy GPS tracker enters motion mode when there is vibration. | ||
Alarm reminder | vibration alarm | In the armed state, if abnormal vibration is detected, the mobile app will push an alarm message to the user. | ||
| Fence alarm | Support fence alarm. | |||
| OVERSPEED | Support overspeed alarm. | |||
| Low battery alarm | The APP displays the battery level, and an alarm is triggered when the battery level is low. | |||
| tamper alarm | Detect and alert the platform from dark to bright. (Controllable switch, default on) | |||
| Positioning optimization | Blind spot supplementary transmission | Support automatic storage of multiple sets of positioning data when the terminal is offline, and upload them when the signal returns to normal. | ||
| Auxiliary positioning | Support AGPS assisted positioning function to enhance the positioning effect. | |||
| Inflection point compensation | When the 4G LTE high accuracy GPS tracker direction angle changes by more than a certain angle, immediately report a position information to improve the trajectory effect. | |||
| Base station+GPS+Beidou+WIFI positioning | Automatically enable base station positioning when WIFI and GPS/Beidou cannot locate | |||
| Upgrade | Remote Upgrade | Support remote OTA upgrade. | ||
| SEND SMS COMMAND | SMS settings | Can set IP and port APN、 Local number, alarm mode, timer mode, week mode | ||
| SMS inquiry | Return the current terminal parameters | |||
Specification Parameters
| Category | Project | Specification parameters | ||
| Communication specifications | Network standard | FDD-LTE:B1/3/5/8, B7/B28(optional) TDD-LTE:B34/B38/B39/B40/B41 | ||
| Method of communication | UDP | |||
| GNSS specifications | locate mode | Beidou&GPS dual star positioning, WIFI+GPS+base station assisted positioning | ||
| positioning accuracy | GPS positioning error<10m (this data is for reference only, and the positioning error is related to factors such as terrain and time in the area where the terminal is located); The positioning error of the base station is based on the density of the base stations in the interval it is located in; WIFI positioning<30m | |||
| Sensitivity | Tracking sensitivity: ≤- 162dBm, capture sensitivity: ≤- 148dBm | |||
| positioning time | Cold start ≤ 33S, hot start ≤ 5S | |||
| Basic Specifications | Standby current | ≤5mA | ||
| Charging method | Type-C USB | |||
| Charging Voltage | 5V-1A/5V-2A | |||
| battery | 1000/3000/6000/10000mAH | |||
| pilot lamp | Charging (red), network (green) | |||
| Reliability | Waterproof grade | IP67 | ||
| operation temperature | -20~+60℃ | |||
| Appearance | Overall dimensions | 1000mAh : 54 (L) x 32 (W) x 18 (H) mm 3000mAh : 68 (L) x 42 (W) x 25 (H) mm 6000mAh : 80 (L) x 51 (W) x 32 (H) mm 10000mAh : 100 (L) x 61 (W) x 32 (H) mm *The actual size and weight may vary depending on the configuration, manufacturing process, and measurement method. | ||
| Body color | black | |||
| weight | 80g/100g/130g/170g | |||
1. Automatic upgrade: If the battery level is greater than 30%, do not touch the screen when restarting. There will be two words "upgrade" next to the signal in the upper left corner, and then wait for about five minutes for automatic upgrade. 2. Manual upgrade: If the battery level is greater than 30%, click on remote upgrade in the settings, do not touch the screen, and it will automatically upgrade. Do not click upgrade within 5 minutes of booting up, as the backend will automatically query the version at this time.
If the device is not online, you can check it one by one as follows. 1. Try restarting the device first. If it still doesn't work after restarting, follow the steps below to troubleshoot. 2. Is the IMEI entered into the platform consistent with the actual IMEI of the device. (It is recommended to check the device IMEI in the device menu) 3. Check if the SIM card inserted into the device is in arrears, if it is shut down, and if a second real name authentication is required. 4. Whether the device displays a 4G signal and the data icon is normal (the icon with a diagonal bar represents abnormality) without any outstanding fees or shutdown 5. If the signal is not displayed, unplug and reinsert the SIM card, restart the device and check again. If the 4G signal still doesn't work despite normal display, find another SIM card, insert the device and restart to see if it works properly. If it works, it's a problem with the SIM card.
During the device entering power-saving mode, it cannot automatically update its positioning, and functional instructions cannot be executed in a timely manner. It needs to be set to normal mode before it can work normally according to instructions. Please make backups yourself!
If the device is located indoors or in an underground parking lot, it may result in the inability to search for GPS satellite signals, which are either WIFI signals or base station signals, leading to significant errors, which is a normal phenomenon. After the device moves outdoors or leaves an area with poor signal, it will automatically calibrate its position. As long as it is outdoors or in an open area, the error will not be significant.
The front of the device faces outward because there is a ceramic antenna on the front that receives signals. If the front is obstructed by metal, it will affect the normal use of the device.
