Product Features
Security protection

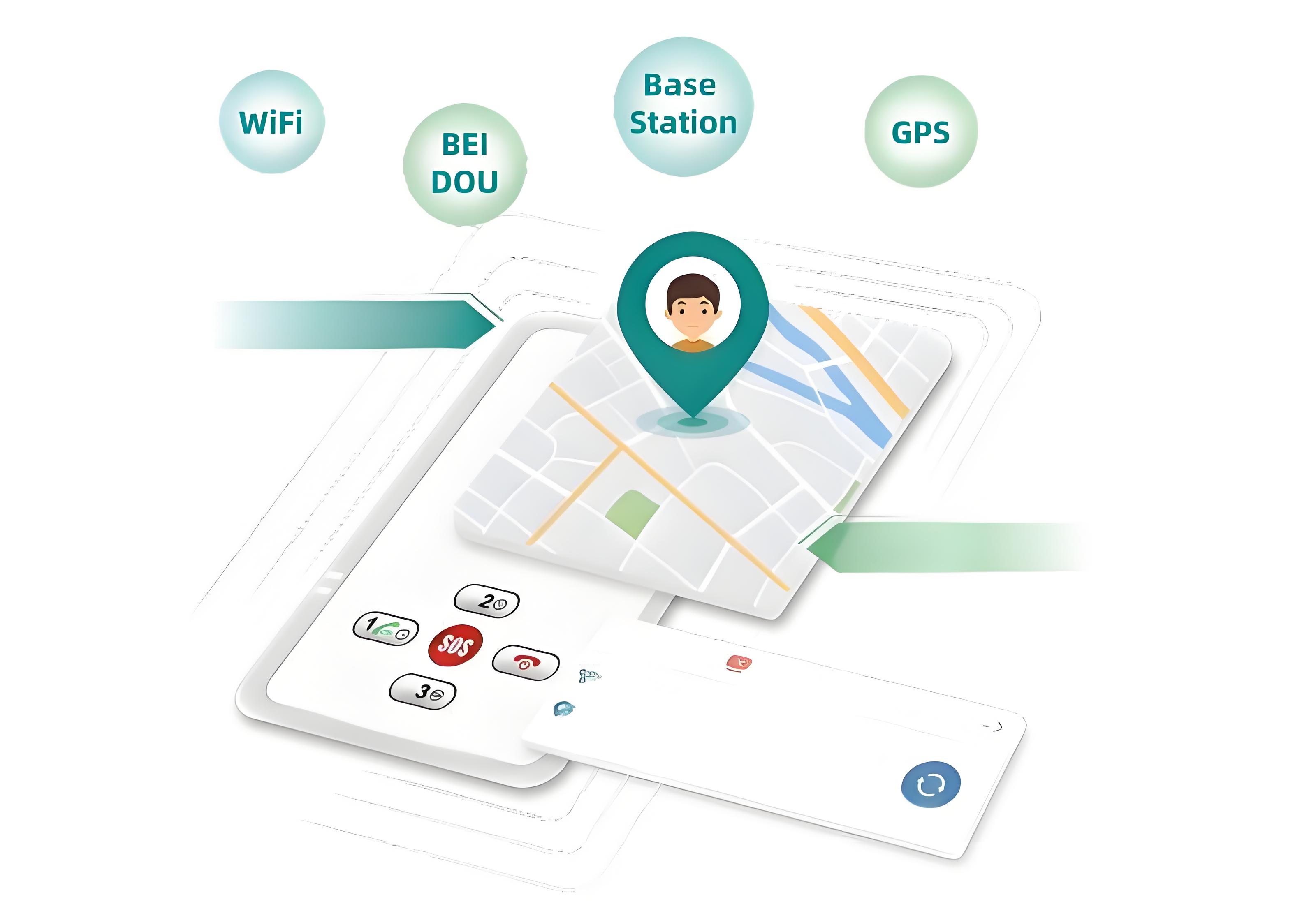

The combination of electronic fence and multi-mode positioning (Beidou/GPS/WiFi/base station) allows the mobile app to query the child's movement trajectory and provide real-time warning of any violations.
Sensorless passage and efficient management
The sensing device at the school entrance can simultaneously read ≥ 500 student IDs, achieving non-stop and fast passage.
Attendance data supports automatic statistics and report export based on class, grade, date, and other conditions.
Anti addiction design
No gaming entertainment function, supports class without interruption mode, only retains call and location functions
Incoming call firewall
The Kids safe cell phone can only accept incoming calls from bound numbers, and other numbers cannot be dialed in to prevent harassing phone calls from entering.
Ecological compatibility
Scalable and compatible with urban public transportation and subway payment systems
Core Functions
| Safety Management | Real time positioning and trajectory query | Real time positioning of students' positions, supporting electronic fence warning, and the parent app can view the historical trajectory of students' positions |
| Emergency Response | Students can use their Kids safe cell phone to communicate with their parents for free. In emergency situations, the SOS help function can be triggered, and location information can be synchronously pushed to the associated account | |
| Home school interaction | Intelligent attendance notification | Automatically determine the status of students entering and leaving the school through RFID card readers inside and outside the school gate, and synchronize attendance data in real-time to parents' mobile phones and the school system |
| Classroom interactive support (optional) | Students can participate in classroom quizzes, and teachers can receive real-time feedback on their learning progress | |
| Campus services | Consumer Management | Support cashless payment for on campus restaurants and shops, parents can set consumption scenarios and limits, and view transaction records |
| Data interoperability | Support education network/Internet access, query attendance, consumption and other data by authority |
Specification Parameters
Project | Specification Parameters |

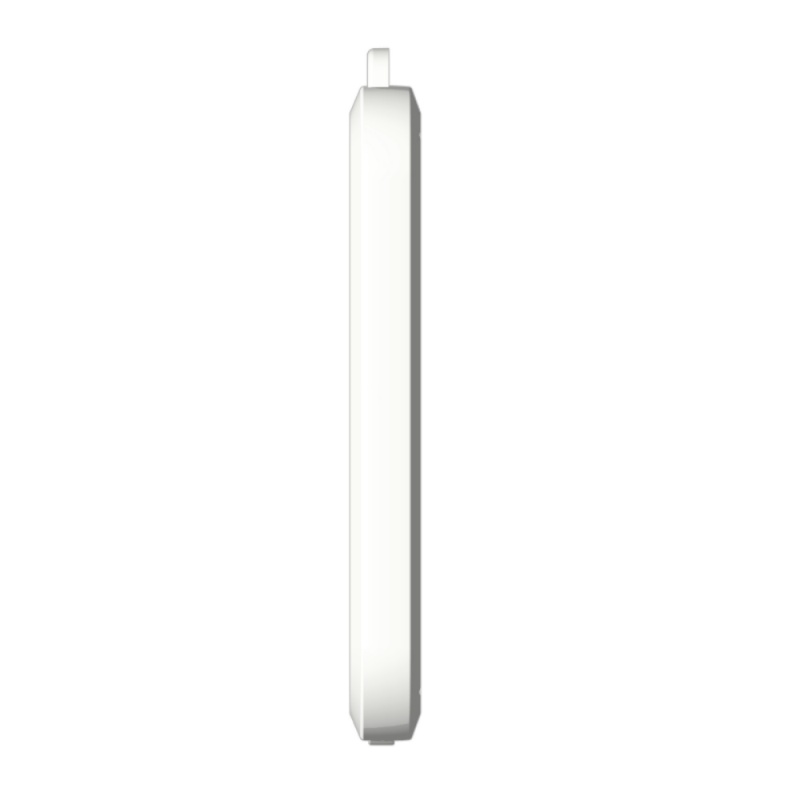

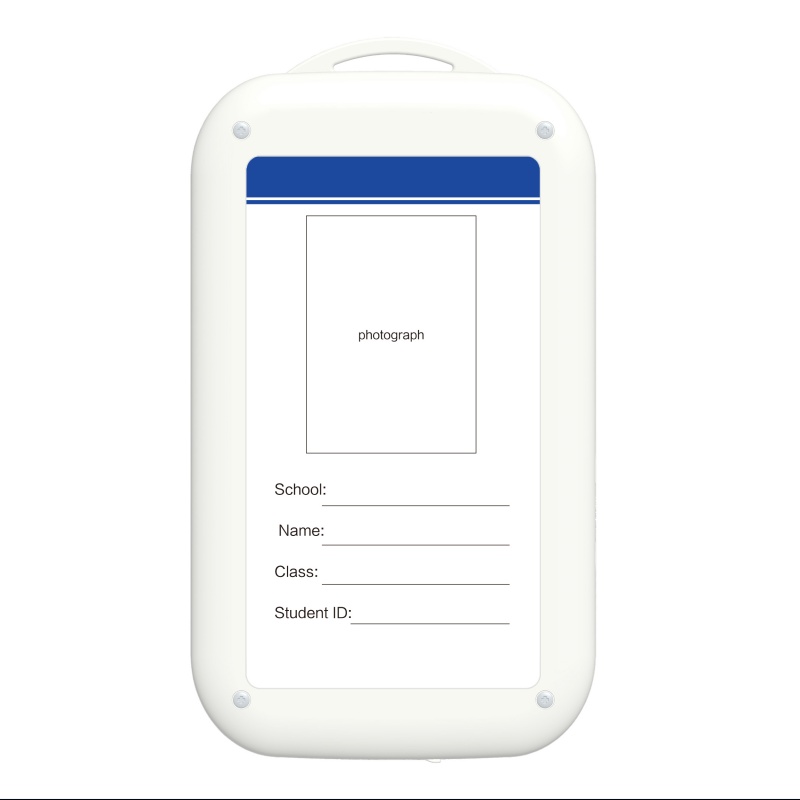

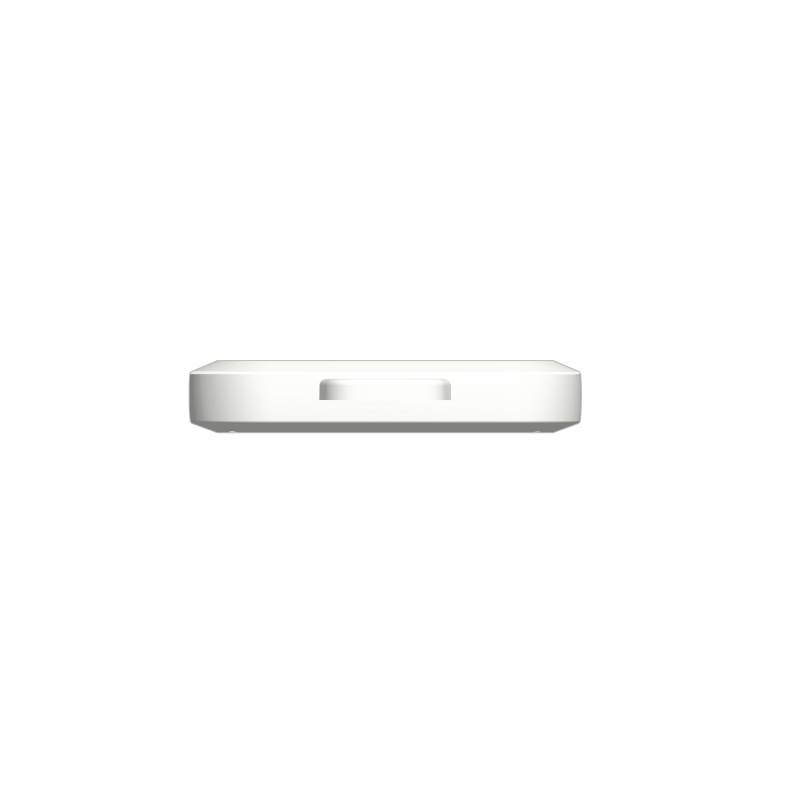

SIZE | Overall Dimensions: 106.6 * 59.5 * 10.9MM |
Waterproof Level | IP65 |
| operation temperature | -20 ℃ to+60 ℃ |
Weight (Including Battery) | 70g |
Operating System | RTOS |
Language Support: Supports Multiple Languages | Support |
VOLTE | Supports 4G VOLTE(Voice Communication） |
RAM | 16M |
ROM | 16M |
Work Frequency Band | TDD-LTE: B34/B38/39/40/41 |
Screen (Inches) | 1.54 Inches |
Resolution | 240*240 |
Key | One power on button，One SOS and three family care keys. |

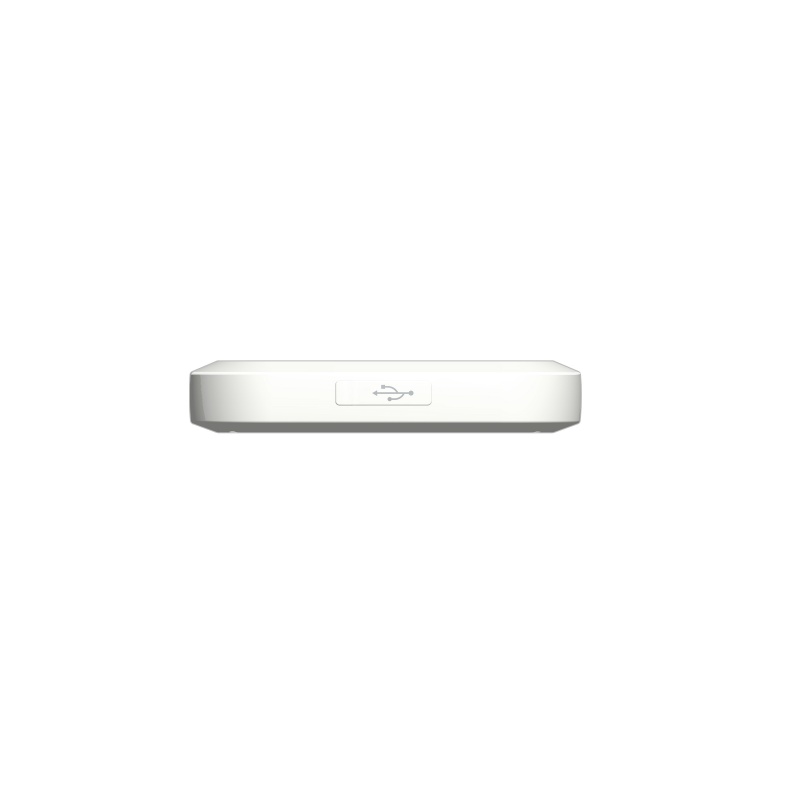

Extraposition I/O COM port | one individual USB 2.0 |
Loudspeaker | Two-in-one horn |
MIC | Inlay MIC |

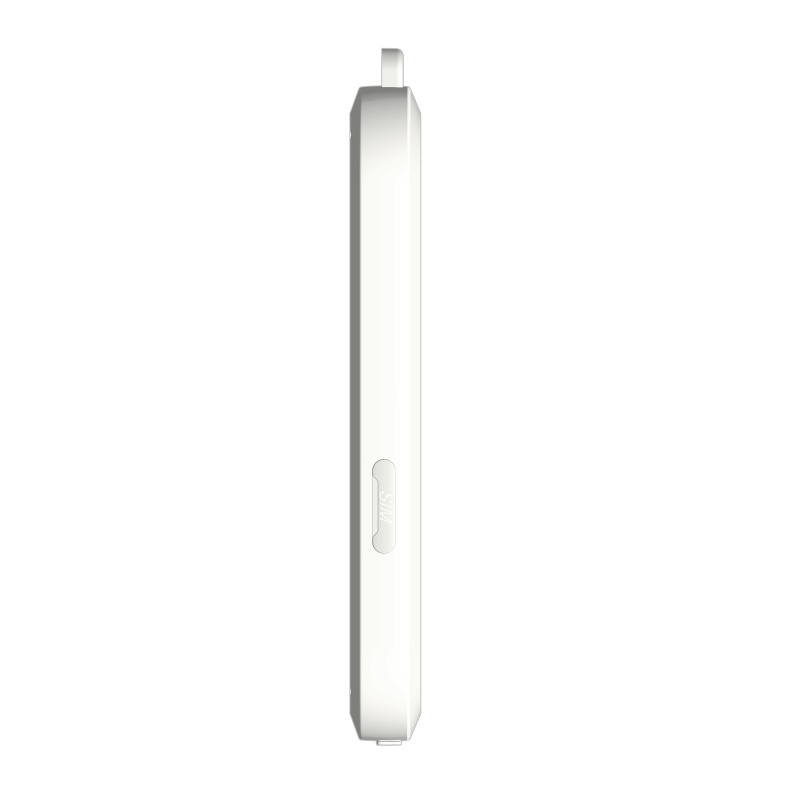

SIMcard | One SIM Card |
WIFI | Support WIFI_SCAN |
Battery | 3.7V/1200mAh Rechargeable Polymer Battery, Maximum Output Current ≥2A |
| Standby time | 7 days |
| Call duration | >4H |
Power Adapter | 5V DC |
G-SENSOR | Support |
GPS | Support， Positioning accuracy ≤ 15 meters |
NFC | Support(Optional) |
BT | Support(Optional) |
| Material | ABS+PC |
1. Automatic upgrade: If the battery level is greater than 30%, do not touch the screen when restarting. There will be two words "upgrade" next to the signal in the upper left corner, and then wait for about five minutes for automatic upgrade. 2. Manual upgrade: If the battery level is greater than 30%, click on remote upgrade in the settings, do not touch the screen, and it will automatically upgrade. Do not click upgrade within 5 minutes of booting up, as the backend will automatically query the version at this time.
If the device is not online, you can check it one by one as follows. 1. Try restarting the device first. If it still doesn't work after restarting, follow the steps below to troubleshoot. 2. Is the IMEI entered into the platform consistent with the actual IMEI of the device. (It is recommended to check the device IMEI in the device menu) 3. Check if the SIM card inserted into the device is in arrears, if it is shut down, and if a second real name authentication is required. 4. Whether the device displays a 4G signal and the data icon is normal (the icon with a diagonal bar represents abnormality) without any outstanding fees or shutdown 5. If the signal is not displayed, unplug and reinsert the SIM card, restart the device and check again. If the 4G signal still doesn't work despite normal display, find another SIM card, insert the device and restart to see if it works properly. If it works, it's a problem with the SIM card.
During the device entering power-saving mode, it cannot automatically update its positioning, and functional instructions cannot be executed in a timely manner. It needs to be set to normal mode before it can work normally according to instructions. Please make backups yourself!
If the device is located indoors or in an underground parking lot, it may result in the inability to search for GPS satellite signals, which are either WIFI signals or base station signals, leading to significant errors, which is a normal phenomenon. After the device moves outdoors or leaves an area with poor signal, it will automatically calibrate its position. As long as it is outdoors or in an open area, the error will not be significant.
The front of the device faces outward because there is a ceramic antenna on the front that receives signals. If the front is obstructed by metal, it will affect the normal use of the device.
