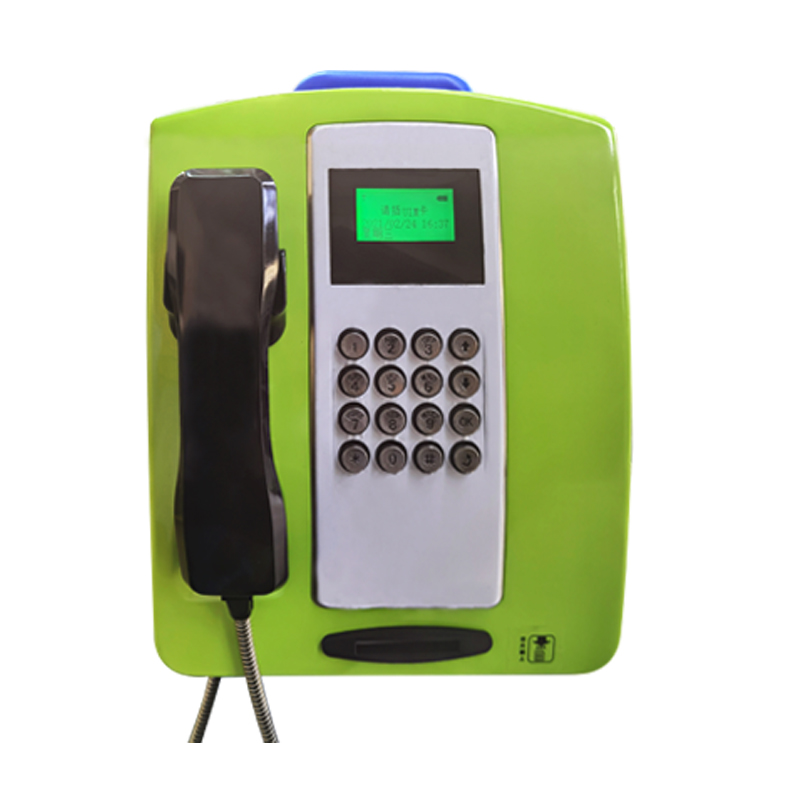

Product Features
Outdoor Durability
Waterproof and Dustproof: The 4G LTE outdoor telephone meets the IP65 protection rating, effectively guarding against rain and dust.
Temperature Resistance: The 4G LTE outdoor telephone operates reliably in extreme temperatures ranging from -20°C to 60°C.
UV Resistance: The casing material is specially treated to prevent aging from prolonged sun exposure.
Impact Resistance: The robust design can withstand physical shocks.
Tamper-Proof Design: Equipped with an anti-tamper alarm switch that sends an alert to the platform if the 4G LTE outdoor telephone is removed.
Communication Functions
SIM Card Support: Supports the insertion of a SIM card for voice calls and data transmission over the 4G network.
Voice Calls: Supports HD voice calls using VoLTE (Voice over LTE) technology, ensuring high-quality voice communication.
Multi-Band Support: Compatible with multiple network bands to ensure seamless connectivity across different regions.
Call Features: Includes traditional phone functions such as caller ID, call history, redial, mute, and speakerphone.
SMS Functionality: Supports sending and receiving SMS messages, suitable for alerts and remote control.
Power and Battery Life
External Power Supply: Powered via an external power adapter or solar power, suitable for environments without a power source.
Backup Battery: Built-in rechargeable battery provides several hours of use during power outages.
Low-Power Design: Energy-efficient, suitable for long-term use.
Installation and Application Scenarios
Installation Options: Supports wall-mounted, pole-mounted, or embedded installation to fit various outdoor scenarios.
Application Scenarios: Ideal for public places such as parks, squares, and campuses, providing reliable communication services. Also suitable for remote areas without traditional telephone lines.
Core Functions
Functional Blocks | Functional Details | Function Description |
Basic Call Functions | HD Voice Call (VoLTE) | Supports high-definition voice calls over the 4G network, with clear audio quality and low latency. Compatible with traditional 2G/3G networks to ensure calls can still be made when 4G coverage is insufficient. |
Caller ID | Displays the caller's phone number and supports missed call alerts. | |
Speakerphone | Supports speakerphone mode, suitable for conference calls or when hands-free operation is needed. | |
Mute Function | Allows temporary muting during calls to protect privacy or reduce background noise. | |
SMS Functions | SMS Sending and Receiving | Supports sending and receiving SMS messages, suitable for verification codes and notifications. Supports long SMS and group messaging. |
SMS Storage | Automatically saves received SMS messages, allowing viewing by time or contact. Can set an upper limit for SMS storage to avoid insufficient memory. | |
SMS Alerts | Displays a reminder on the screen or emits a corresponding alert tone when an SMS is received. | |
Settings and Personalization | Language Settings | Supports multiple language interfaces to accommodate users from different regions. |
Ringtone Settings | Allows customization of ringtones for incoming calls and SMS notifications. | |
Time and Date | Automatically synchronizes with network time, or allows manual setting of time and date. | |
Screen Display | Supports adjusting screen brightness and backlight duration. Optional support for personalized wallpapers or themes. | |
Call Timing | Supports setting specific call time periods. | |
Call Duration | Supports setting call duration limits. | |
Software Updates and Maintenance | Firmware Upgrade | Supports remote OTA (Over-The-Air) updates or USB updates for device firmware to fix vulnerabilities or add new features. |
Troubleshooting | Built-in diagnostic tools to check network connection, signal strength, hardware status, etc. |
Specifications
Category | Items | Specifications |
Communication Specifications | Network Bands | FDD-LTE: B1/3/5/8 (B7/B28 optional) TDD-LTE: B34/B38/B39/B40/B41 |
Display | Type | LED or LCD screen |
Size | 2.4 inches | |
Resolution | 128×64 pixels (color screen) | |
Basic Specifications | Standby Current | ≤5mA |
Power Interface | Standard 3-pin power socket with built-in reverse polarity protection | |
Standard Power Supply | 9V~2A | |
Power Supply Range | DC 5-36V | |
Battery | 2600mAH | |
Reliability | Operating Humidity | 93% ± 3% (non-condensing) |
Operating Temperature | -20°C to +60°C | |
Appearance | Dimensions | 325 (L) x 255(W) x 150(H) mm Actual dimensions and weight may vary depending on configuration, manufacturing process, and measurement methods. |
Material | SPHC | |
Color | Green/Yellow | |
Weight | 4.5Kg |
1. Automatic upgrade: If the battery level is greater than 30%, do not touch the screen when restarting. There will be two words "upgrade" next to the signal in the upper left corner, and then wait for about five minutes for automatic upgrade. 2. Manual upgrade: If the battery level is greater than 30%, click on remote upgrade in the settings, do not touch the screen, and it will automatically upgrade. Do not click upgrade within 5 minutes of booting up, as the backend will automatically query the version at this time.
If the device is not online, you can check it one by one as follows. 1. Try restarting the device first. If it still doesn't work after restarting, follow the steps below to troubleshoot. 2. Is the IMEI entered into the platform consistent with the actual IMEI of the device. (It is recommended to check the device IMEI in the device menu) 3. Check if the SIM card inserted into the device is in arrears, if it is shut down, and if a second real name authentication is required. 4. Whether the device displays a 4G signal and the data icon is normal (the icon with a diagonal bar represents abnormality) without any outstanding fees or shutdown 5. If the signal is not displayed, unplug and reinsert the SIM card, restart the device and check again. If the 4G signal still doesn't work despite normal display, find another SIM card, insert the device and restart to see if it works properly. If it works, it's a problem with the SIM card.
During the device entering power-saving mode, it cannot automatically update its positioning, and functional instructions cannot be executed in a timely manner. It needs to be set to normal mode before it can work normally according to instructions. Please make backups yourself!
If the device is located indoors or in an underground parking lot, it may result in the inability to search for GPS satellite signals, which are either WIFI signals or base station signals, leading to significant errors, which is a normal phenomenon. After the device moves outdoors or leaves an area with poor signal, it will automatically calibrate its position. As long as it is outdoors or in an open area, the error will not be significant.
The front of the device faces outward because there is a ceramic antenna on the front that receives signals. If the front is obstructed by metal, it will affect the normal use of the device.
